How TPV Group Tracks Automotive Components Work-In-Process with Xerafy RFID

Automotive components manufacturer TPV Group uses Xerafy’s Roswell tags to track Work-In-Process throughout its production operations.

Company

TPV Group

Industry

Automotive

Region

Europe

Product

-

System

-

TPV Group has deployed Xerafy’s Roswell rugged RFID tags in its manufacturing process to improve efficiency and visibility in its manufacturing processes. TPV Group supplies body and chassis assemblies, seats and seat components, engine gaskets, and automated guided vehicle (AGV) solutions to leading automotive manufacturers. The company operates five production sites in Slovenia as well as one in Serbia and has more than 1,200 employees.

Upgrading From Barcodes To RFID

The company engaged Slovenian automatic identification integrator LEOSS d.o.o. to develop a new RFID-based system to improve TPV’s production and packaging processes. The solution replaced an existing barcode-based system that required more manual effort from employees on the manufacturing floor.

9b3bd3_14352184465748d881b8cc9aae43d8e7~mv2 How TPV Group Tracks Automotive Components Work-In-Process with Xerafy RFID
RFID-automated cataphoretic production line at TPV Group

“In order to create a solution that would meet TPV’s requirements, we had to select RFID transponders that could operate while mounted on metal carriers and that would be resistant to the effects of chemicals and high temperatures,” said Franci Nadles, owner of LEOSS. “We also needed to program and configure the fixed RFID readers to avoid cross-reading of the carriers, and develop software that can capture data from the RFID tags and send it to the various control systems that TPV uses in its production processes.”

TPV Group has implemented Xerafy’s RFID transponders with fixed readers and antennas as part of a closed-loop system, so the tags are only read on TPV’s production line as they circulate throughout the facility. The tags are attached to customized product carriers in which various metal parts are suspended. These carriers are transported throughout the production facility both on special carts and an overhead conveyor belt.

9b3bd3_9c38bd4a75c743f7b64f1d256107fb99~mv2 How TPV Group Tracks Automotive Components Work-In-Process with Xerafy RFID

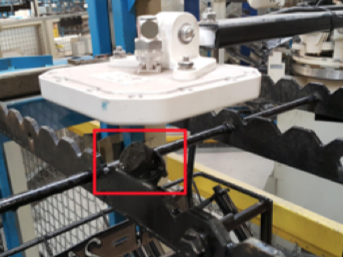

RFID antenna located above every work place for automated data capture

Different components may be loaded on each carrier simultaneously but must be harmonized so the parameters of technological procedures for each production phase are the same for each carrier. Information about the parts on the carrier and production management details are entered into the system as the parts are loaded, and associated with the RFID transponder. A robotic system manages where the carriers are sent for processing using the RFID tag data and automated guided vehicles (AGVs). Eventually, TPV envisions the RFID tags forming the basis for a “Smart Factory” that is completely automated.



Because the RFID tags provide high visibility and accuracy, the employees who package the products at the end of production always receive the appropriate product control and packaging instructions.



The Xerafy Roswell tags have also ensured that TPV can provide full track-and-trace capabilities throughout the production process. During manufacturing, the parts travel through a number of harsh treatment processes, including pre-treatment of the surface, cataphoresis coating, drying at 180 degrees Celsius, and powder coating. The Roswell tags are highly resistant to these processes throughout repeated production cycles and can be kept in service over a long period of time. The Roswell UHF tags have a read range on-metal of up to 5 meters and can survive high temperatures up to 250 degrees Celsius. They are also resistant to paint and chemical exposure.

Xerafy is a pioneer in Industrial RFID, bringing to market several innovations that enable advanced industrial identification and automation capabilities.



In addition to a complete range of field-proven RFID tags available off-the-shelf, Xerafy offers Custom RFID Tags services, covering everything from a personalization service bureau to custom-design engineering capabilities.
